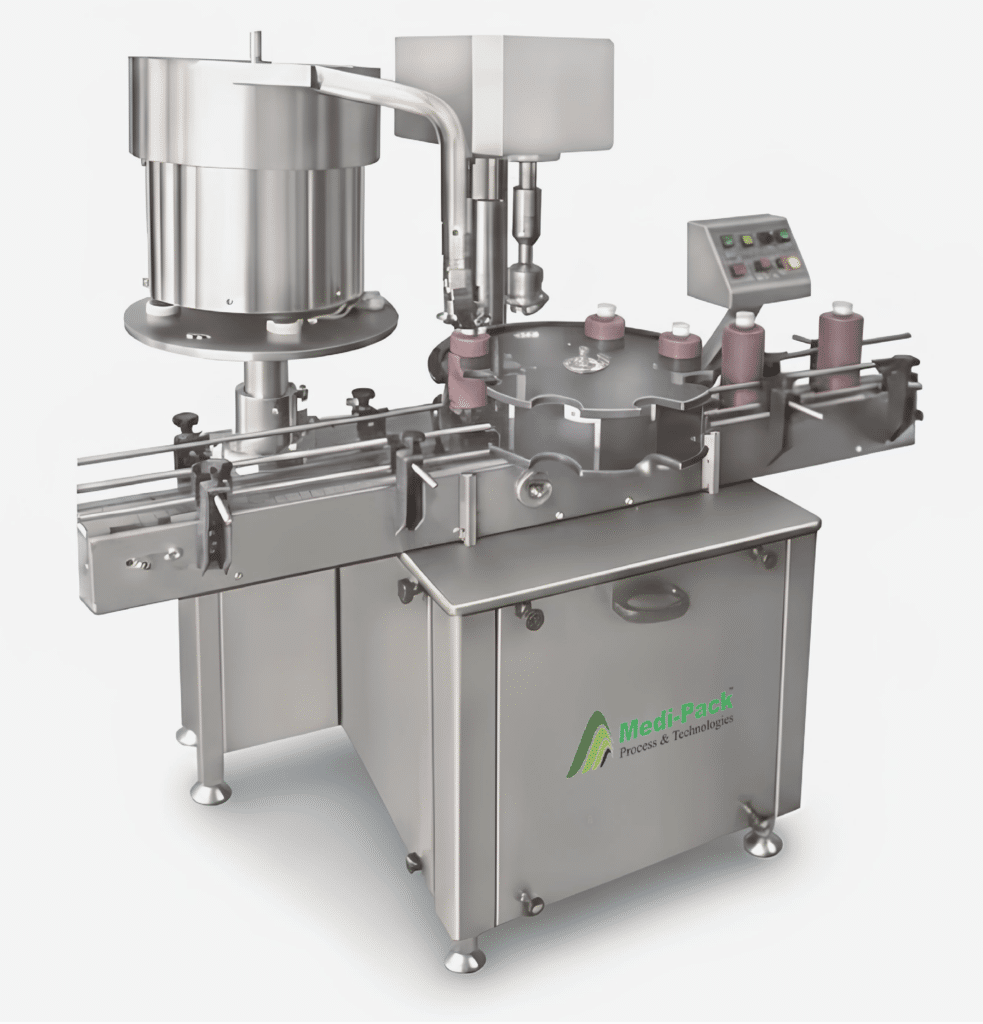

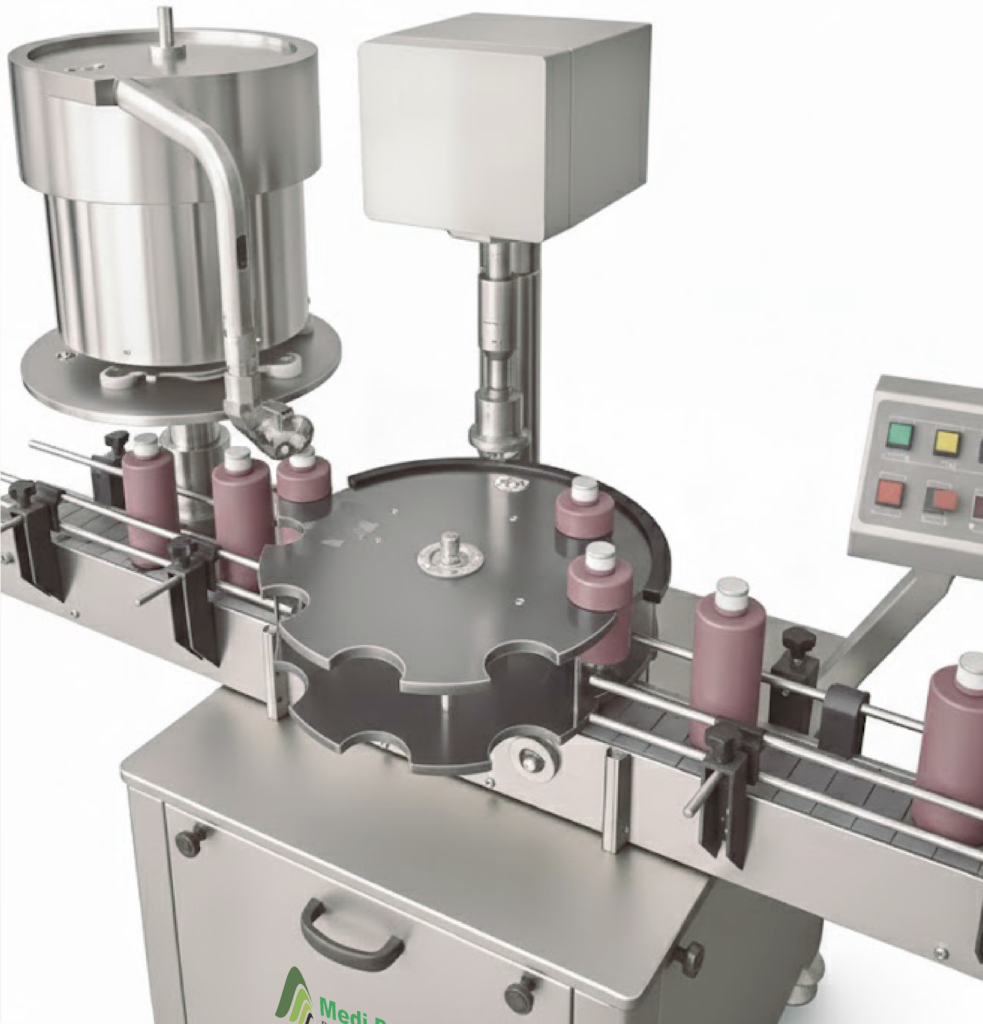

Automatic Single Head Lug Cap Sealing Machine
The Automatic screw Cap Sealing Machine is precision built on sturdy welded SS frame completely enclosing in stainless steel sheet and doors are providing to facilitate the servicing of machine.
Operation
The feed container moving on conveyor belt are fed into star wheel, bringing the container below the sealing head in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap feeding bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of threading & sealing.
Lets Build Your
Manufacturing
Future
Share your requirements with us and our engineering team will provide you with the perfect machinery solution for your manufacturing needs.
Our Location
Ahmedabad, Gujarat
Contact Us
+91 9979929599
Submit Your Requirements
Automatic Single Head Lug Cap Sealing Machine Features
- No container No cap arrangement.
- SS elegantly matt finished body.
- Single motor synchronizes conveyor Star wheel & platform turret.
- Adjustable height of conveyor belt To align with other machine of the line.
- Sealing pressure can be varied to Suit different gauges and size of caps.
- Low noise level, low power consumptions.
- Self-lubricating UHMW-PE guide profile For low friction wears surface, smooth And noiseless conveying.
- SS cladding or s.s 304 of all exposed parts to ensure long life and resistance against corrosion.
- Synchronized A/C drives to synchronize Conveyor, Star wheel and Platform Turret & capping bowl.
- Adjustable bottle height gauge for easy and quick setting.
