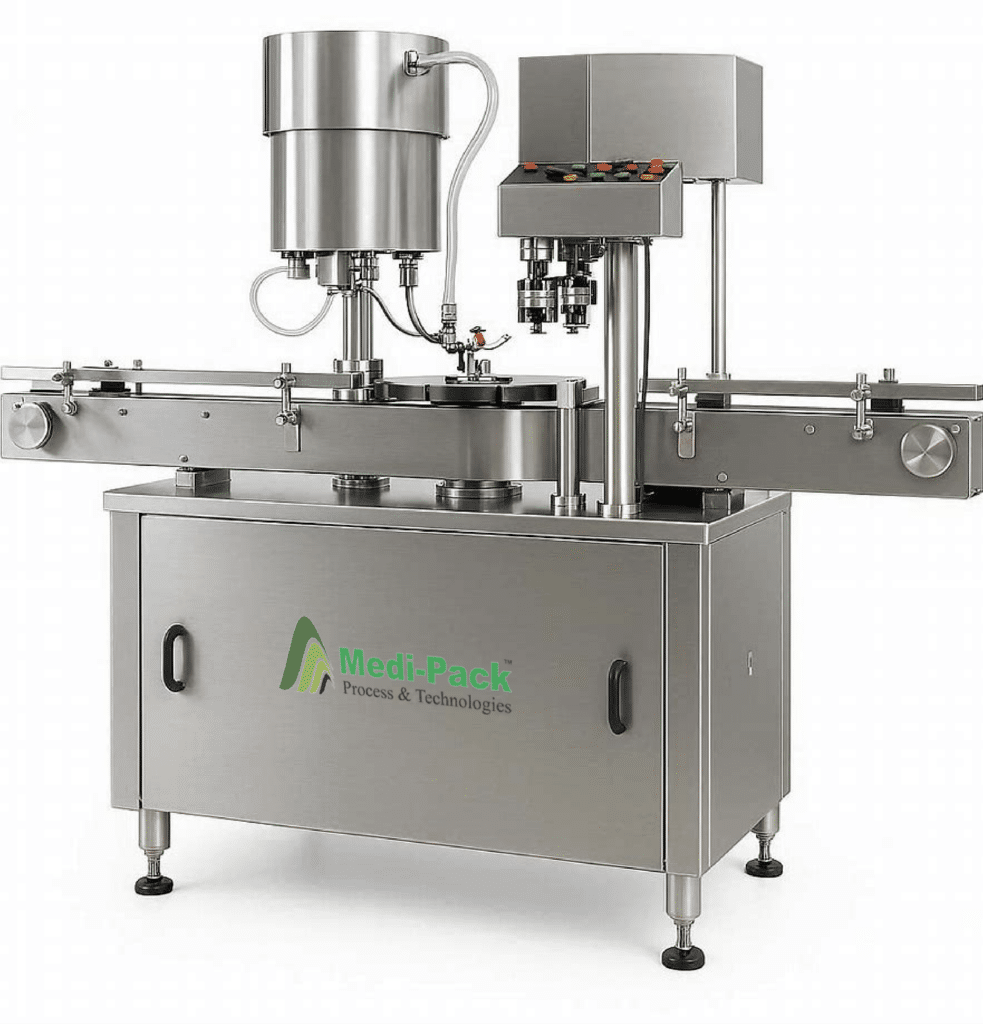

Automatic Single Head ROPP Cap Sealing Machine

The Automatic ROPP Cap Sealing Machine is precision built on sturdy welded MS frame completely enclosing in stainless steel sheet and doors are providing to facilitate the servicing of machine.

Operation

The feed container moving on conveyor belt are fed into star wheel, bringing the container below the sealing head in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap feeding bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of threading & sealing

Salient Features

No container No cap arrangement.
SS elegantly matt finished body.
Single motor synchronizes conveyor Star wheel & platform turret.
Adjustable height of conveyor belt To align with other machine of the line.
Sealing pressure can be varied to Suit different gauges and size of caps.
Low noise level, low power consumptions.
Self-lubricating UHMW-PE guide profile For low friction wears surface, smooth And noiseless conveying.
SS cladding or hard chrome platting of all exposed parts to ensure long life And resistance against corrosion.
Synchronized A/C drives to synchronize Conveyor, Star wheel and Platform turret Capping bowl.
Adjustable bottle height Gauge for easy and quick setting.

Technical Specifications

Model	MPARCS-60
Output/Hour*	1000 to 3000 bottles.
Direction of Movement	Left to Right
No. of Sealing Head	1 Nos.
Main Motor	1 HP / 415 Volts / 50 Hz.
Cap Feeding Bowl	300 Watt, Magnetic coil
Height of Conveyor**	860 mm to 910 mm
Machine Dimensions**	1525 mm (L) x 950 mm (W) x 1900 (H) Approx.
Case Dimensions	1750 mm (L) x 1150 mm (W) x 2250 (H) Approx.
Net Weight	350 Kgs. Approx.
Gross Weight	550 Kgs. Approx.
Change parts required	(A) Container: Star Wheel, Back Guide
	(B) Cap Die, Delivery Chute, Bowl
Electrical supply	1 Phase + Neutral + Earthing
Electrical load	0.75 KW
