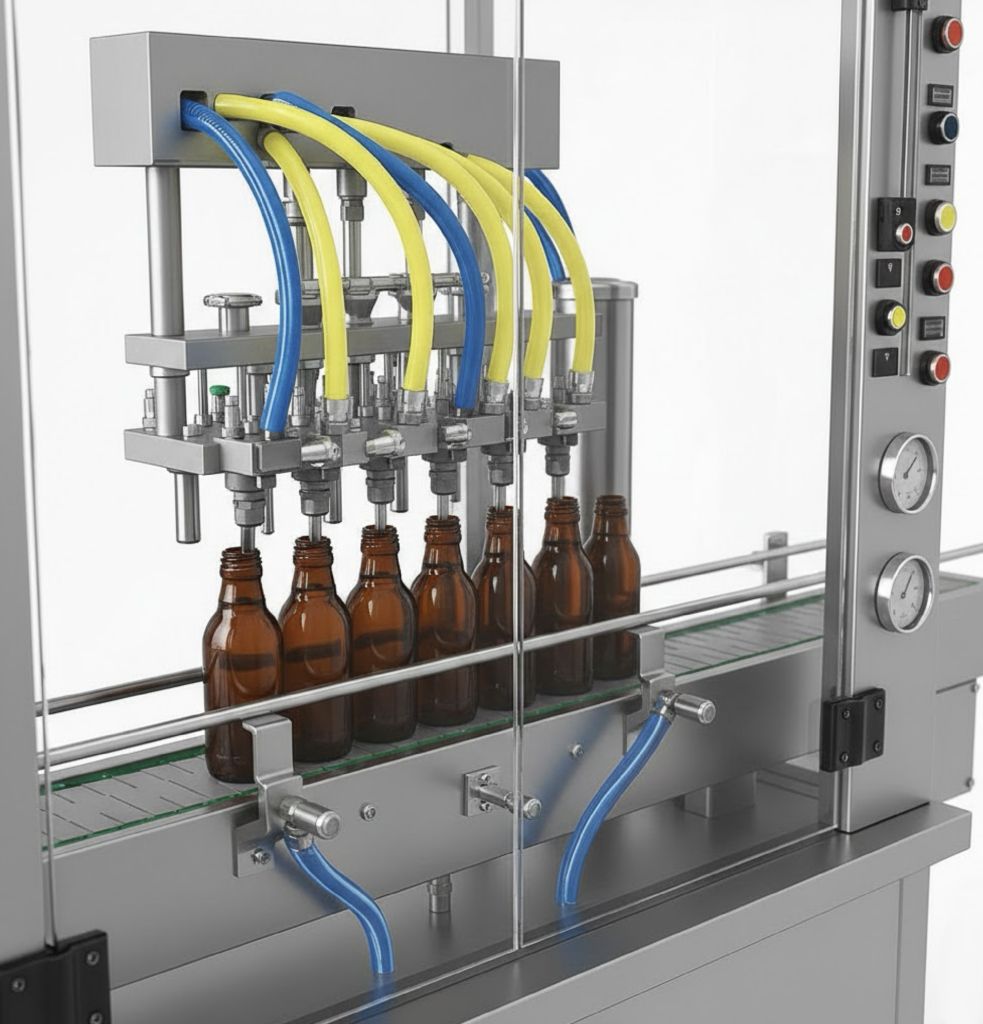

Automatic Vertical Air jet & Vacuum Bottle Cleaning Machine
MP Automatic Vertical Air Jet Cleaning Machine work on positive air pressure & vacuum cleaning. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body, Consists of S.S. Slat Conveyor & Reciprocating cleaning nozzles. No container No cleaning system arrangement is standard features of the machine.
The main drive of the machine and conveyor drive consist of A/c Motor with synchronized variable A/c Frequency Drive.
Operation
Automatic Vertical Air Jet Cleaning Machine can accomplish a task by a photoelectric system, all the bottle should be cleaned before being filled, when an empty bottle arrives at the specified position, a cleaner comes down automatically until at the mouth of the bottle, then pure air is pressed into the bottle, and the impurity inside of the bottle is removed by vacuum system. This product conforms to the requirements of GMP completely.
Salient Features
- Positive air pressure and vacuum cleaning.
- Easy operation.
- Adjustable & diving type cleaning nozzles.
- Automatic loading and unloading of container.
- Individual control for air pressure and vacuum cleaning.
- Higher capacity blower to clean properly. S.S. pressure meter.
Technical Specifications
| Model | MPTT-36 |
|---|---|
| Direction | Clockwise / Anti clock wise as per requirement |
| RPM of Disk | Through ACVFD |
| Power Characteristics* | 0.5 HP/220 V/50 Hz |
| Height of Disk* | 860 mm to 910 mm |
| Machine Dimensions* | 965 x 965 x 1160 |
| Case dimensions | 1125 x 1125 x 1300 |
| Net weight | 175 Kegs’. |
| Gross Weight | 350 Kegs. |
| Container Size (Only for Round Bottle ) | Ø 22 mm to Ø 100 mm |
| Respectively height 58 mm to 240 mm | |
| (Height option for other bottle height available) | |
| Total Load | 0.5 KW |
