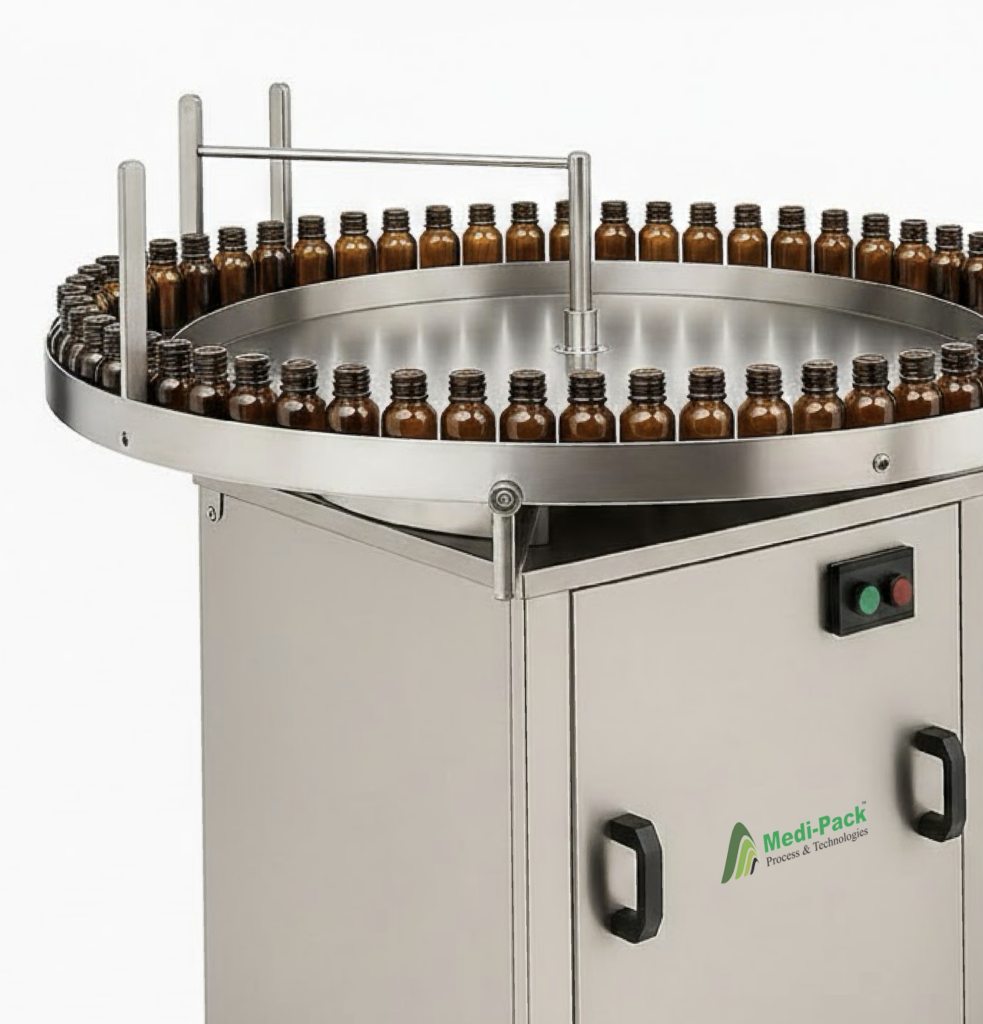

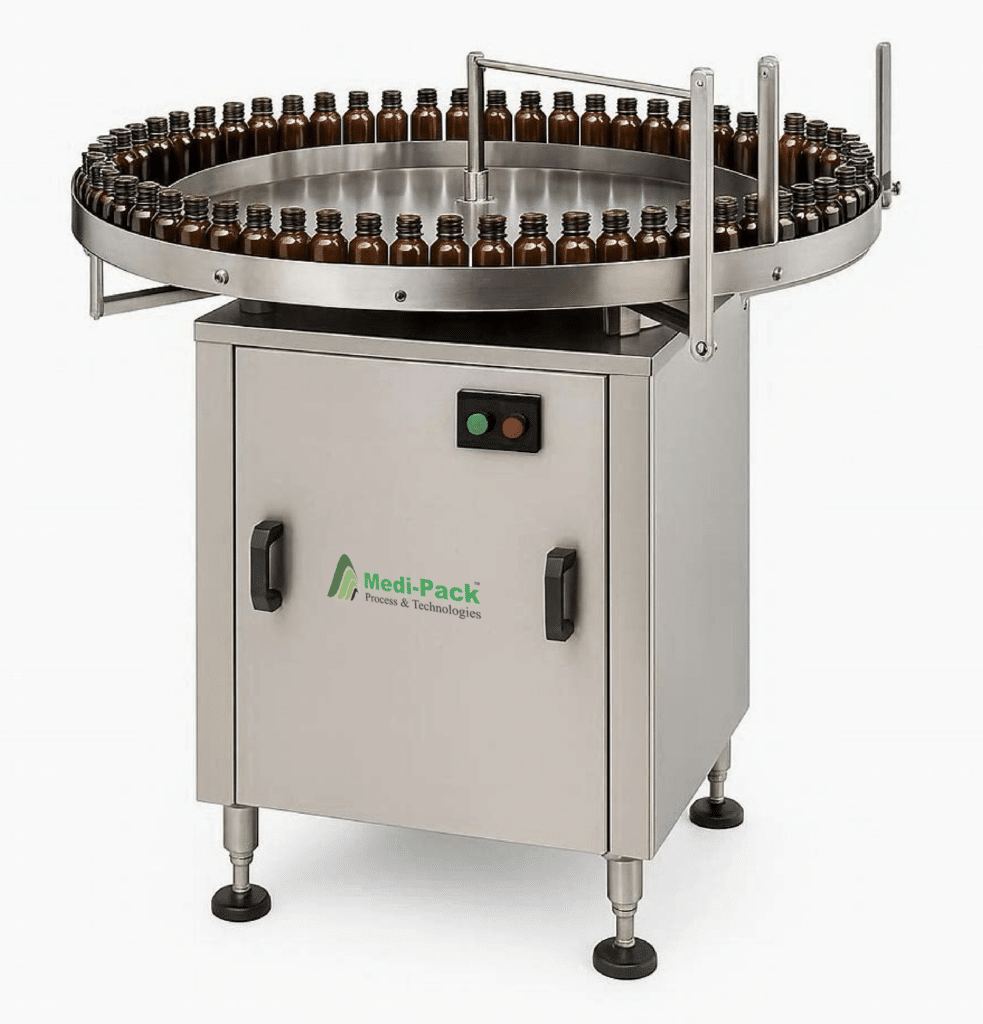

Bottle Turn Table
Stainless steel scrambler & Un Scrambler, which is familiar as turn table. This is built on MS Square frame, solid guide rail & reduction gear box for jerk less & noiseless performance. Turntable is useful to ensure total synchronization, uniform flow of container and to take a turn at 90 degree to suit different machine and purpose in automatic liquid line.
Turn Table Features
- Construction AISI S.S. 304 Quality.
- Three step pulley for different speed.
- Special self-aligning bearings ensure smooth and trouble free operation.
- Suitable for different type of container.
- S.S. Elegantly Matt Finished Body.
- Reduction gears ensure jerk free and noiseless operation.
- Matt Finished body.
Turn Table Technical Specifications
| Model | MPTT-36 |
|---|---|
| Direction | Clockwise / Anti clock wise as per requirement |
| RPM of Disk | Through ACVFD |
| Power Characteristics* | 0.5 HP/220 V/50 Hz |
| Height of Disk* | 860 mm to 910 mm |
| Machine Dimensions* | 965 x 965 x 1160 |
| Case dimensions | 1125 x 1125 x 1300 |
| Net weight | 175 Kegs’. |
| Gross Weight | 350 Kegs. |
| Container Size (Only for Round Bottle ) | Ø 22 mm to Ø 100 mm |
| Respectively height 58 mm to 240 mm | |
| (Height option for other bottle height available) | |
| Total Load | 0.5 KW |
